Applicable for

This portable device is for personal outdoor using. Users could be soldier in jungle, climber in mountain where 4G/5G signal is absent.

How the System operates

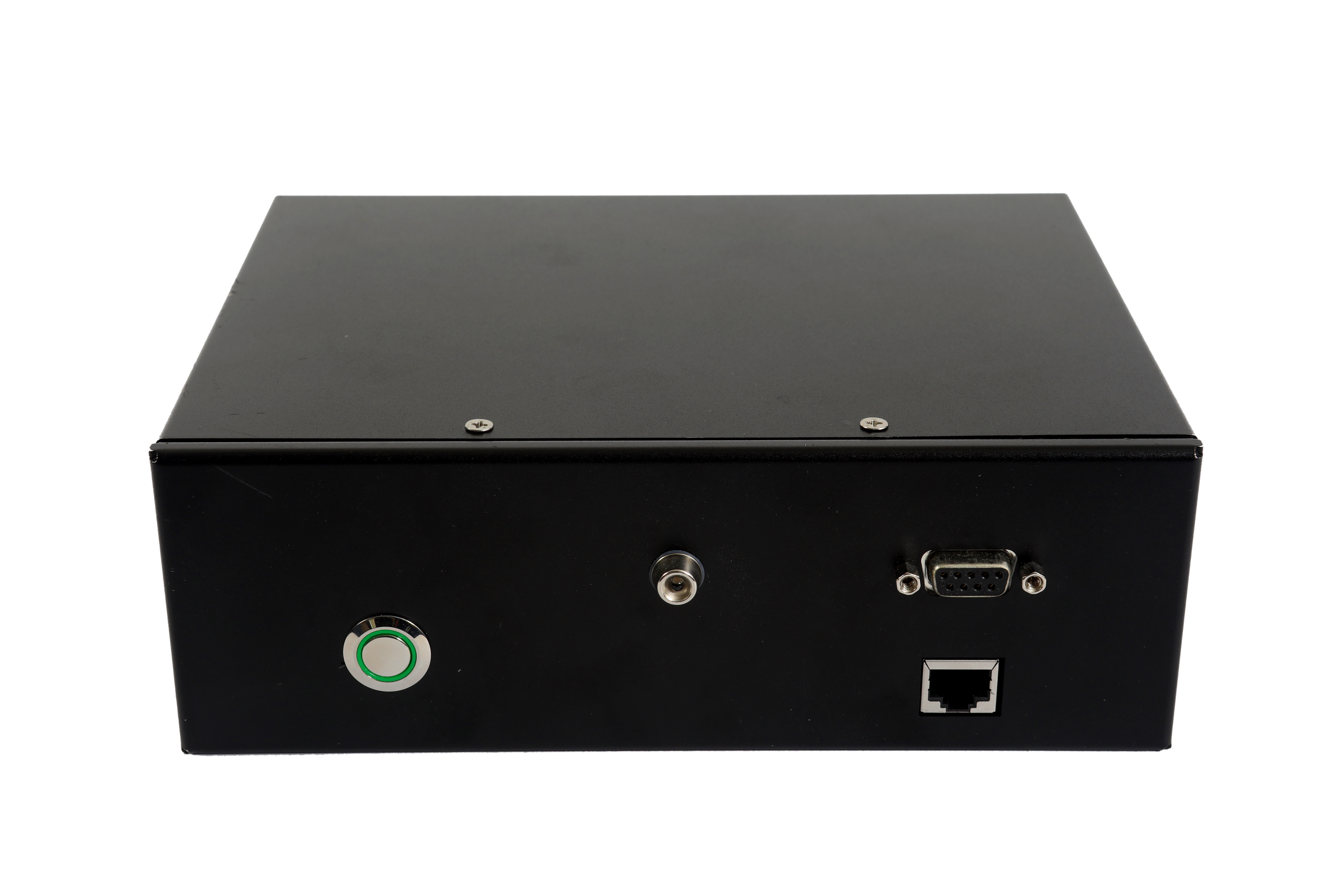

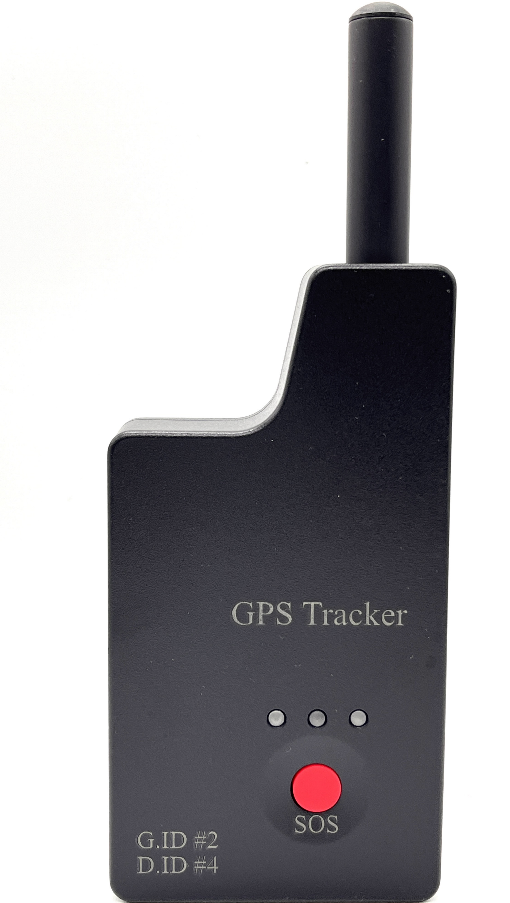

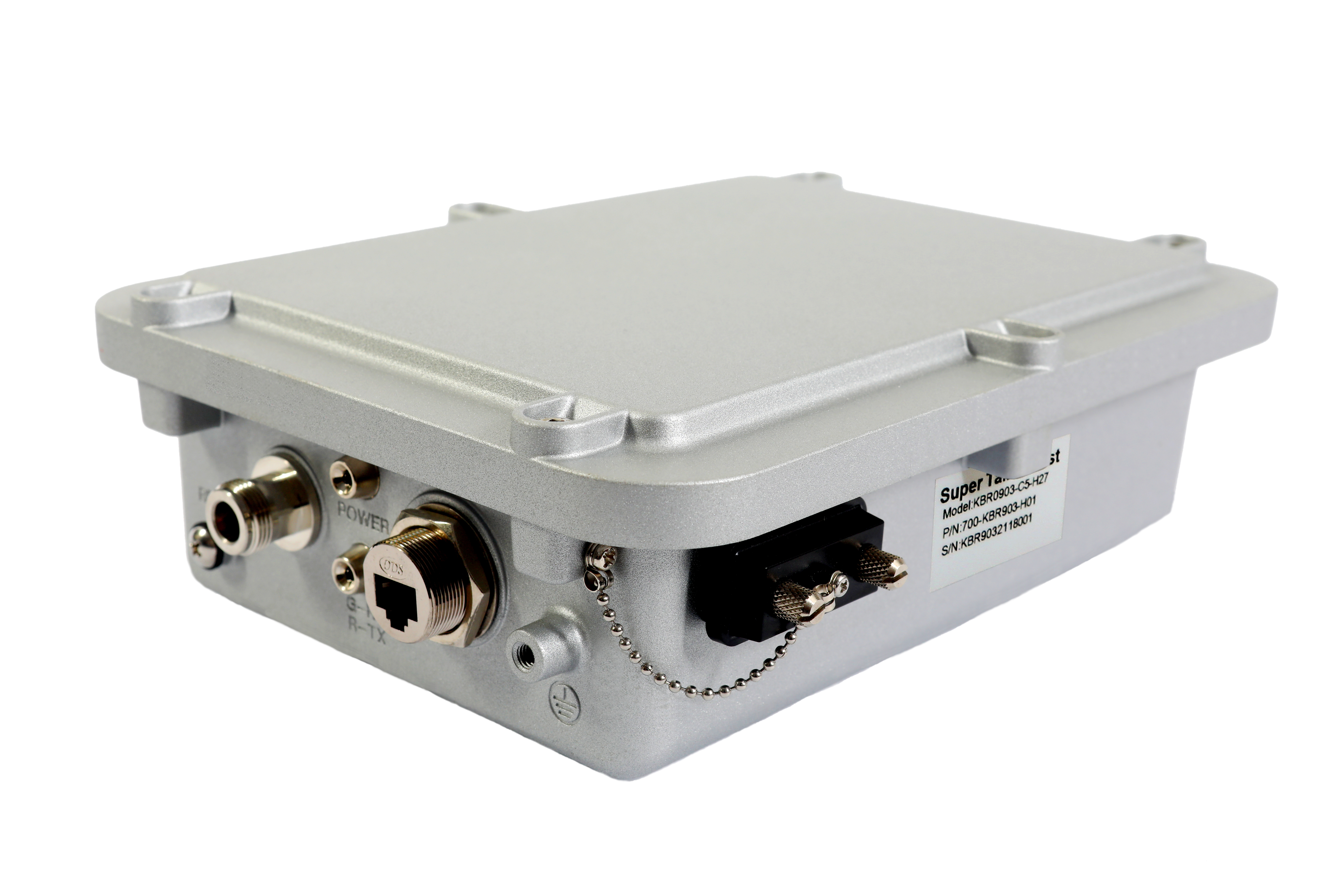

One Host can management several GPS Trackers, it depends on how long time Super TaiRa Host can wait for each tracker's data update. Users also can push the button in the GPS Tracker, so that the SOS signal could be carry with GPS data together delivery to Super TaiRa Host.

Main Features

* Wireless radio operation at Sub 1GHz Frequency

* Low power consumption

* 2 way transmittion mode

* High Channel Selectivity and FEC capability

* Build-in rechargeable battery and Type-C for connecting to the power bank

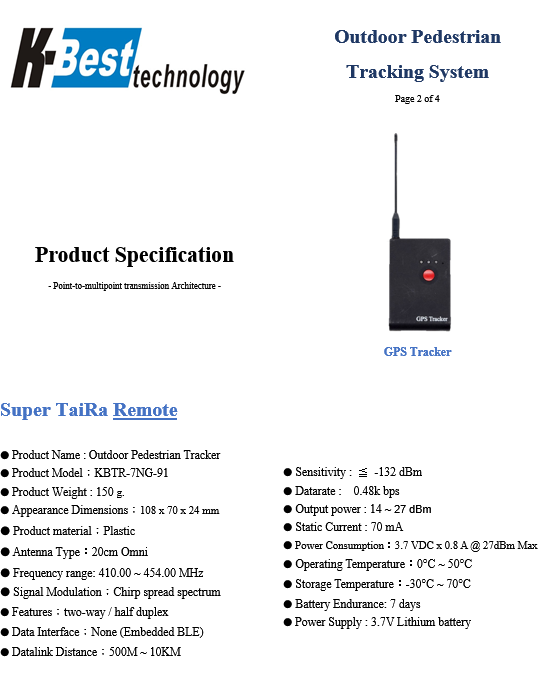

Product Specification  Point-to-multipoint transmission Architecture

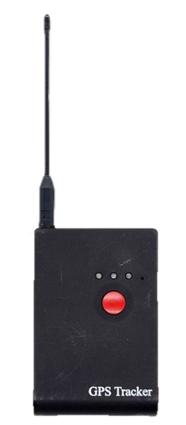

⏺ Product Name : Outdoor Pedestrian Tracker

⏺ Product Model：KBTR-7NG-91

⏺ Product Weight : 150 g.

⏺ Appearance Dimensions：108 x 70 x 24 mm

⏺ Product material：Plastic

⏺ Antenna Type：20cm Omni

⏺ Frequency range: 410.00 ~ 454.00 MHz

⏺ Signal Modulation：Chirp spread spectrum

⏺ Features：two-way / half duplex

⏺ Data Interface：None (Embedded BLE)

⏺ Datalink Distance：500M ~ 10KM

⏺ Sensitivity : ≦ -132 dBm

⏺ Datarate :  0.48k bps

⏺ Output power : 14 ~ 27 dBm

⏺ Static Current : 70 mA

⏺ Power Consumption：3.7 VDC x 0.8 A @ 27dBm Max

⏺ Operating Temperature：0°C ~ 50°C

⏺ Storage Temperature：-30°C ~ 70°C

⏺ Battery Endurance: 7 days

⏺ Power Supply : 3.7V Lithium battery
